21st Century Podiatry and Chiropody Chairs Operating tables and ICU beds.

21st Century Podiatry

Integrated Podiatry Workstations

To ORDER ring +44 (0) 1536 520003

MOBILE 07709 602000 or to e-mail click here

Dentists click here WE DELIVER WORLDWIDE

AT NO EXTRA COST

levita Levita Chi £2499

chair Fusion £2499 (see below for more pics)

More pictures below

The colours of the chairs are : Maroon, Light Blue, Dark Blue, Light Violet, Light
Green, Beige, Dark Grey and Reddish Maroon.

You can order extras or remove accessories as you wish.
Side unit without chair available see below.
Electrical operation for seat and back, electric leg raise, split leg or all in one.
Preset chair settings optional (e-mail height of chair to rise to etc)
Actuator-controlled movement
Chair mounted delivery system with instrument tray
Operating light with double intensity focus and dichoric-coated parabolic imported reflector
Doctor's stool with gas spring
Micromotor drill 20000 RPM foot switch and on/off button.
If you want extra drills or other accessories please enquire on +44 (0) 1536 520003 or e-mail

Operating theatre table Ł2600 Inclusive

Six electrically-operated movements

Drive mechanism	Linear Actuator 24 VDC
Length	1900mm
Width	500mm
Height	800 to 1100mm
Trendelenberg & Reverse	35 degrees
Lateral Tilt	15 degrees
Backrest	85 degrees upto 30 degrees down
Leg	Flat to 90 degrees down
Kidney	50mm upward

icu bed ICU Bed Ł2499

The Fusion series of ICU Beds are rich in features that make them highly versatile and efficient.

These beds are easily maneuverable with soft touch keys on a hand-held remote controller.

Master control switches located on the bed enable immediate disengaging of any undesired

movement. The 24-volt, DC operated drives are imported and oil-free, and they ensure smooth,

snag-free operation for a long period.
Head section can be raised to 75 degrees.
Leg section has a fowler movement and can be raised to 75 degrees.
The head end and the foot end are capable of withstanding reasonable loads imposed on them

during normal use of the bed. They are covered with laminated sheets.
Fusion beds can be maneuvered to 30 degrees at both Trendelenberg and reverse Trendelenberg

positions. Lower and upper limits of vertical movements are 550mm and 800 mm respectively.

To see the chairs dimensions CLICK HERE

THIS IS AN INTRODUCTORY OFFER AND WILL NOT LAST SO HURRY !

Prices include VAT and Delivery, If you do not pay VAT

in areas like the Channel islands etc the price is still the same

as this is an INTRODUCTORY OFFER & we are covering the VAT

Delivery usually takes up to 8 weeks from ordering.

All chairs will have concertina bottoms as the Y2K & Topaz below.

Shipping can be arranged worldwide

Click here to convert to other currencies

For measurements of the chair, max heights etc ring 01536 520003

and we will fax or e-mail through the details.

chair chair

chair tray

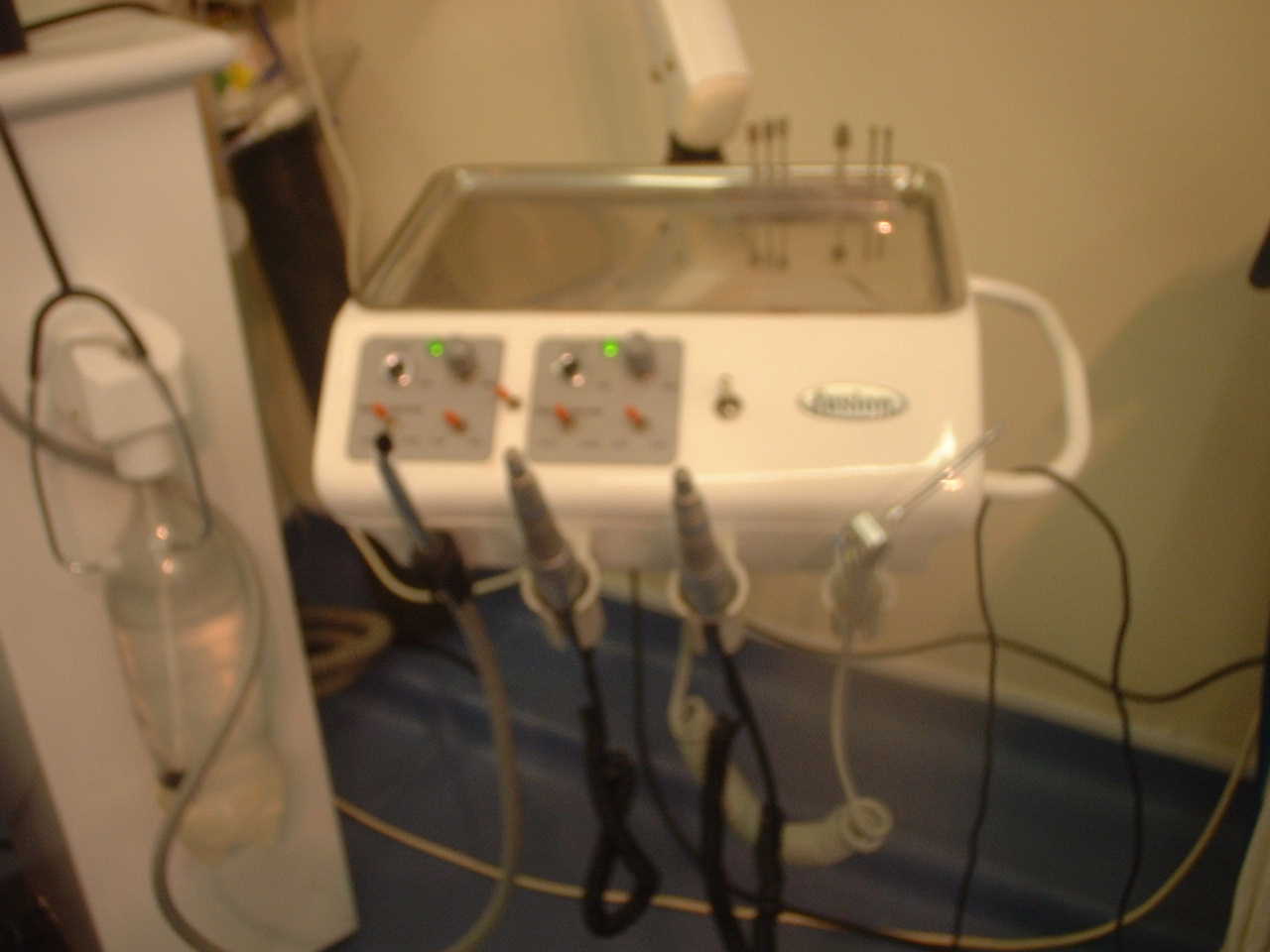

Picture showing a tray with suction, 2 micromotors and a 3-way syringe.

Two control panels for each drill with speed, on/off switch and reverse and forward direction,

switch in between panels is for the foot switch control and the switch on the right is the light on/off

high intensity and low intensity.

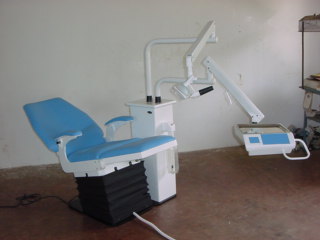

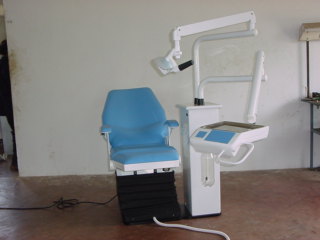

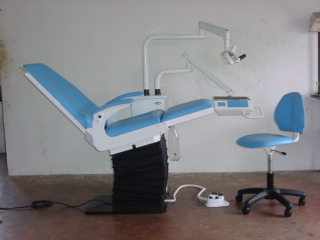

Chair : The seat up/down movement, backrest up/down movement, and
the leg rest up/down movements are controlled using linear
actuators working on 24 volts. The above movements are controlled
using a foot operated switch.
Instrument tray and light are mounted to the chair and it travels
up and down with the chair.
Light : It has a dichoric coated multifaceted glass reflector and a
12 volts halogen bulb. The light has an intensity of 20000 lux
when in bright mode and 14000 lux on dim mode.
Instrument tray : Is made of fibre reinforced plastic and has the
following instruments attached to it.
    1. Micromotor with straight hand piece : RPM on No load -
35000
                                              Weight - 200 grams
                                              Max. current drawn -
3 Amps
                                              Voltage - 15 to 32
volts
    2. Three way syringe : Maximum pressure of air - 50 psi
                              Maximum pressure of water - 50 psi
          (This pressure can be regulated using the air pressure
regulator built into the system)

Compressor : Voltage - 220 Volts AC
                Motor HP - 1 HP
                Air delivery - 95 litres per minute on no load
                Motor speed - 1460 RPM
                Reservoir tank capacity - 25 litres
                Head mounting - spring suspended
                Protection - 1. Mechanical air pressure safety
valve
                             2. Electrical pressure switch.
The compressor can be kept upto 5 metres away from the chair.
